Asus PRIME H610M-R DDR5 LGA1700 Micro-ATX Motherboard

The Asus PRIME H610M-R DDR5 LGA1700 Micro-ATX Motherboard is the ideal choice for PC DIY builders and users seeking a reliable, future-proof platform for their system. Designed to support the latest 12th, 13th, and 14th Generation Intel® Core™, Pentium® Gold, and Celeron® processors, this motherboard provides the performance and flexibility you need for both gaming and professional applications.

With a micro-ATX form factor, the Asus PRIME H610M-R DDR5 motherboard is compact, making it a perfect fit for small-to-medium PC builds while offering ample connectivity and expansion options. It features 2 x DIMM slots that support up to 64GB of DDR5 memory with speeds of up to 3200 MHz, ensuring smooth multitasking and responsiveness for demanding tasks.

Connectivity is a key strength of this motherboard, featuring 1 x PCIe 4.0 x16 slot for powerful graphics cards and 1 x M.2 slot supporting 32 Gbps data transfer speeds for fast storage. The motherboard also comes with 4 x SATA 6Gb/s ports, providing flexible storage expansion for your build.

Security and longevity are top priorities, with Asus’ 5X Protection III technology. This includes DIGI+ VRM for precise power delivery, LANGuard for network protection, and SafeSlot Core to reinforce the PCIe slots, making the ASUS PRIME H610M-R highly durable and reliable. The motherboard also offers robust network connectivity with Realtek 1Gb Ethernet and immersive audio with Realtek 7.1 Surround Sound High Definition Audio CODEC.

The Asus PRIME H610M-R DDR5 motherboard is designed to make system setup easy with an intuitive UEFI BIOS, EZ Flash 3, and CrashFree BIOS 3 for effortless BIOS updates and recovery.

Whether you’re building a gaming rig, workstation, or home PC, the Asus PRIME H610M-R offers a balanced combination of performance, connectivity, and protection, making it a perfect foundation for your next PC build.

FEATURES:

• Supports Intel® 12th, 13th & 14th Gen CPUs for high-performance processing
• Micro-ATX form factor for versatile, compact PC builds
• 2 x DIMM slots for up to 64GB of DDR5 memory (3200 MHz)
• PCIe 4.0 x16 slot for powerful graphics cards and expansion
• 1 x M.2 slot for ultra-fast storage with 32 Gbps transfer speeds
• 4 x SATA 6Gb/s ports for ample storage options
• Realtek 1Gb Ethernet for stable and fast network connectivity
• Realtek 7.1 HD Audio CODEC for an immersive audio experience
• 5X Protection III including DIGI+ VRM and SafeSlot Core for enhanced durability
• UEFI BIOS with EZ Flash 3 and CrashFree BIOS 3 for easy system management and updates

SPECIFICATIONS:

• CPU
• Intel^® Socket LGA1700 for Intel^® Core™ 12th, 14^th & 13^th Gen Processors,Pentium^® Gold and Celeron^® Processors
• Supports up to Intel® 65W CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• Chipset
• Intel® H610 Chipset
• Memory
• 2 x DIMM slots, max. 96GB, DDR5
• 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• Graphics
• 1 x DisplayPort
  1 x VGA port
  1 x HDMITM port
• Expansion Slots
• Intel® Core™ Processors (14th & 13th & 12th Gen)
  • 1 x PCIe 4.0 x16 slot
• Intel® H610 Chipset
  • 1 x PCIe 3.0 x1 slot
• Storage
• Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
• Intel® H610 Chipset
• M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
• 4 x SATA 6Gb/s ports
• Ethernet
• 1 x Realtek 1Gb Ethernet
• USB
• Rear USB (Total 4 ports)
  • 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 6 ports)
  • 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support an additional 4 USB 2.0 ports
• USB Ports
• 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)
• 1 x USB 20Gbps port(s) (1 x USB Type-C®)
• 7 x USB 10Gbps port(s) (7 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
• 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
• 3 x USB 2.0 headers support 6 additional USB 2.0 ports
• Audio
• Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-bit/192 kHz playback
• Audio Features:
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
• Back Panel I/O Ports
• 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x VGA port
• 1 x HDMITM port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard (purple) port
• 1 x PS/2 Mouse (green) port
• Internal I/O Connectors
• Fan and Cooling:
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin Chassis Fan header
• Storage-related:
  • 1 x M.2 slot (Key M)
    4 x SATA 6Gb/s ports
• USB:
  • 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support an additional 4 USB 2.0 ports
• Miscellaneous:
  • 1 x Clear CMOS header
  • 1 x Chassis Intrusion header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x LPT header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1 pin)
  • 1 x 10-1 pin System Panel header
• Special Features
• ASUS 5X PROTECTION III
  • DIGI+ VRM
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core
  • Stainless-Steel Back I/O
• ASUS Q-Design
  • Q-DIMM
  • Q-Slot
  • Q-LED Core
• ASUS Thermal Solution
  • Aluminium heatsink design
• Software Features
• ASUS Exclusive Software
  • Armoury Crate
  • AI Suite 3
  • EPU
  • DIGI+ VRM
  • PC Cleaner
  • ASUS CPU-Z
  • Norton 360 for Deluxe (60 Days Free Trial)
  • WinRAR
• UEFI BIOS
  • ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
• BIOS
• 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability
• WOL by PME, PXE
• Operating System
• Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor
• mATX Form Factor
• Dimensions: 22.6 cm x 19.5 cm

WHAT'S IN THE BOX:

• Asus PRIME H610M-R DDR5 LGA1700 Micro-ATX Motherboard x1
• SATA 6Gb/s cables x2

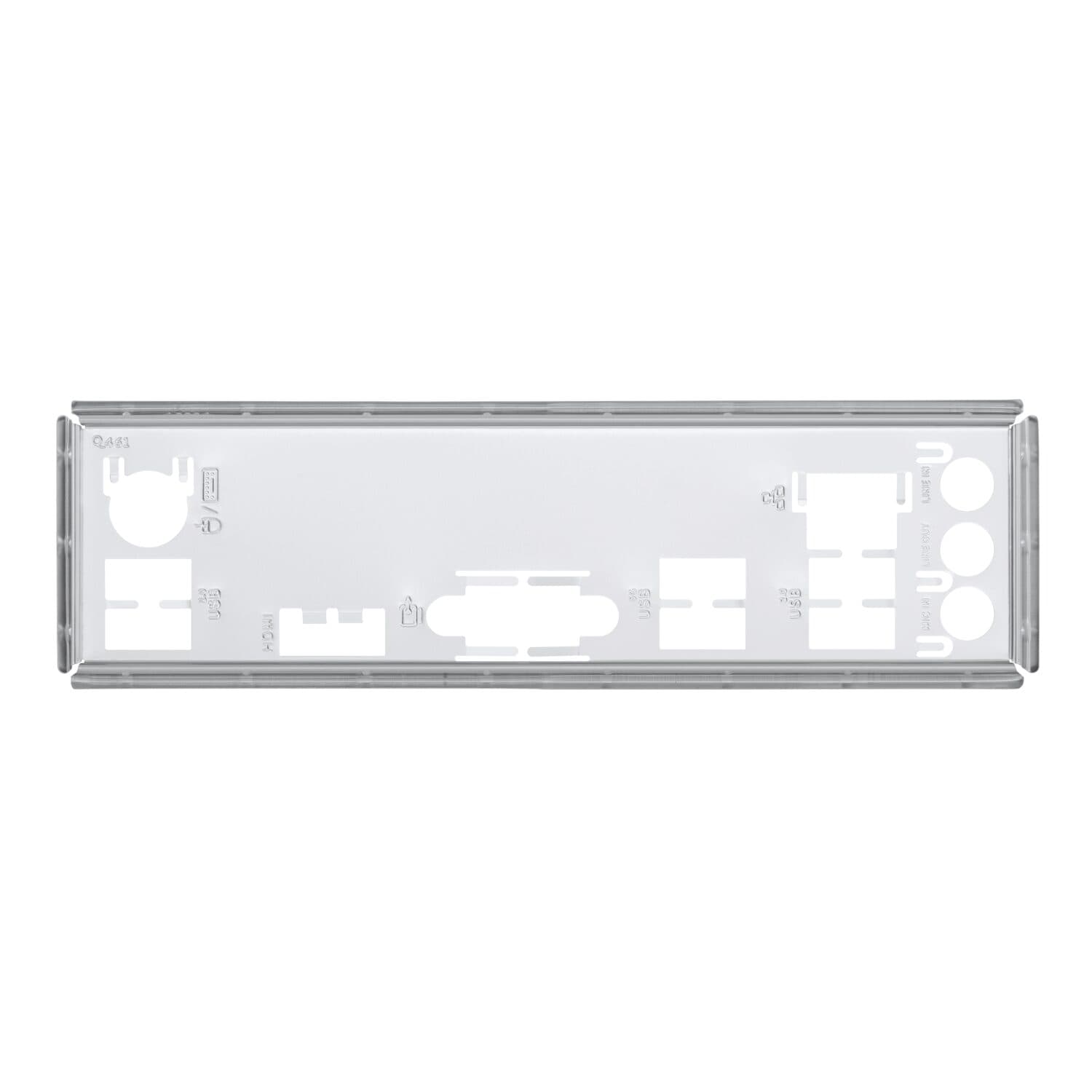

• I/O Shield x1
• M.2 ANCHOR x1
• User guide x1
