ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard

Power your vision with the ASUS ProArt X870E-Creator WiFi motherboard, a next-generation platform built for creators who demand more from every render, compile and export. Designed to unleash the full potential of AMD Ryzen™ 9000, 8000 and 7000 Series processors, this motherboard transforms your PC into a precision tool for high-performance content creation.

At its core, 16+2+2 power stages rated at 80A deliver stable, efficient power to support multi-threaded workloads with ease. DDR5 memory support, up to 256GB and 8000+ MT/s (OC), ensures lightning-fast responsiveness in editing suites, simulation environments and 3D rendering applications.

Connectivity is second to none. The ASUS ProArt X870E-Creator WiFi motherboard integrates dual USB4® (40Gbps) Type-C® ports, 10Gb and 2.5Gb Ethernet, and cutting-edge WiFi 7 — enabling seamless collaboration, ultra-fast file transfers and cloud-based production pipelines. A front-panel USB-C® connector with Quick Charge 4+ (up to 30W) keeps your devices powered while you create.

Storage flexibility is extensive, with four M.2 slots (two PCIe 5.0 x4 enabled) and four SATA ports, giving creators the bandwidth and space for high-res assets, project archives and scratch disks. PCIe 5.0 x16 support enables workstation-class GPU performance, while ASUS Q-Release and SafeSlot features streamline hardware swaps.

Optimised for professional workflows, the ProArt Creator Hub offers system-level customisation, while integrated AI Overclocking, Cooling, and Networking features adapt performance in real time. Pantone® colour validation utilities ensure accuracy across your visual pipeline.

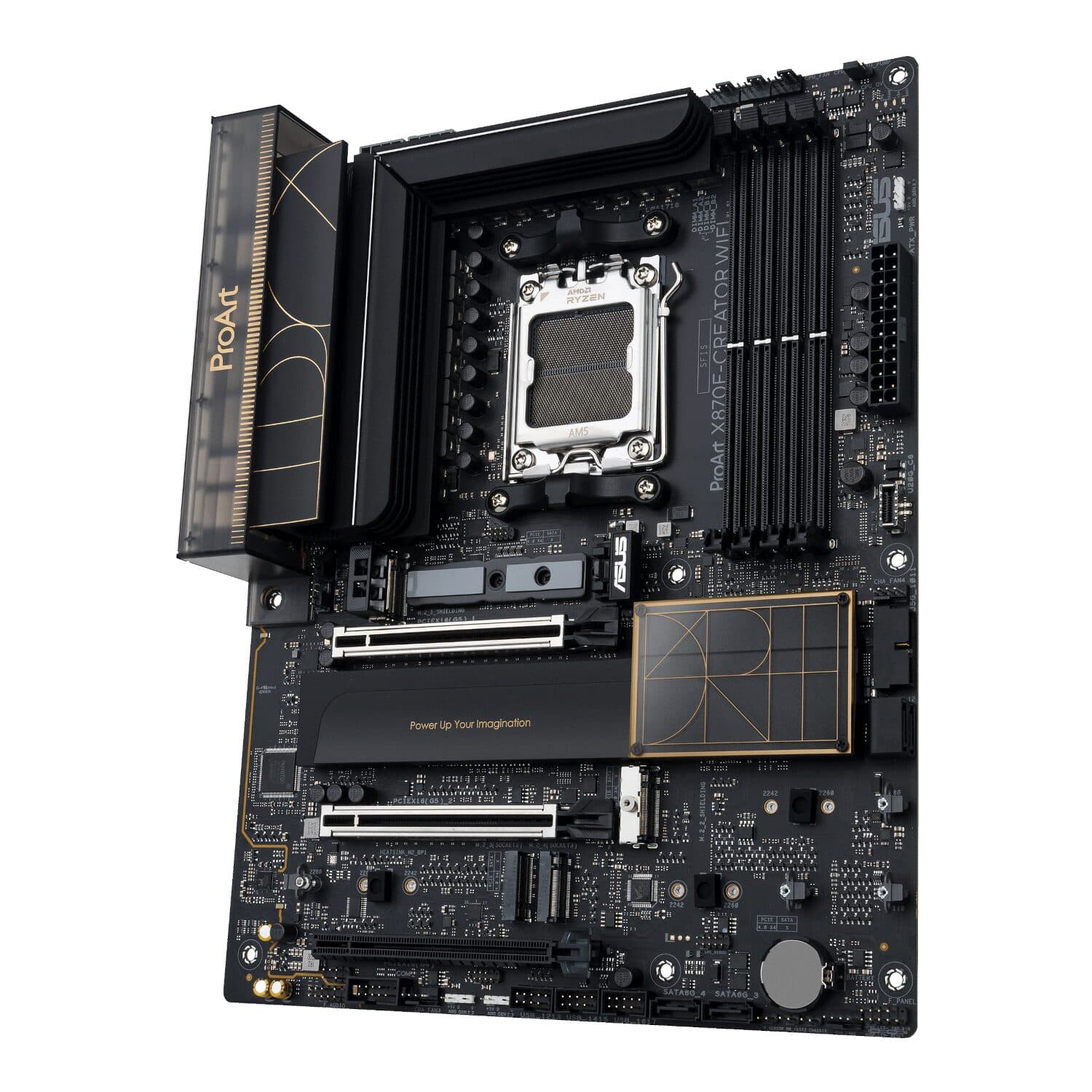

Housed in a sleek, matte-black PCB with metallic gold accents and a translucent I/O shroud, the ASUS ProArt X870E-Creator WiFi motherboard balances form and function in every detail. It’s a premium foundation for creators who won’t compromise — whether you’re building in Blender, editing in DaVinci Resolve or designing across Adobe Creative Cloud.

FEATURES:

• Four ultra-fast M.2 slots, including dual PCIe 5.0 x4 for high-speed NVMe storage
• WiFi 7 with Bluetooth® 5.4 for next-gen wireless performance and multi-device connectivity
• Front Type-C® 20Gbps with Quick Charge 4+ up to 30W and USB Wattage Watcher support
• Sleek ATX form factor with professional black-and-gold aesthetic and translucent I/O shroud
• AI Overclocking, AI Cooling II and AI Networking for optimised, intelligent system performance
• PCIe 5.0 x16 slots with SafeSlot and Q-Release Slim for premium GPU support and easy upgrades
• 16+2+2 power stages (80A) engineered for reliable, high-performance content creation workloads
• ProArt Creator Hub with Colour Control, Fan Management and CreationFirst network prioritisation
• Supports up to 256GB DDR5 memory with speeds up to 8000+ MT/s (OC) and EXPO/AEMP profiles
• Powered by AMD X870E chipset, supporting Ryzen™ 9000, 8000 and 7000 Series desktop processors
• Marvell® 10Gb Ethernet and Intel® 2.5Gb LAN with ASUS LANGuard for high-speed, stable networking
• Dual USB4® Type-C® ports with 40Gbps bandwidth for ultra-fast transfers and external display support

SPECIFICATIONS:

• CPU
  • AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• Chipset
  • Socket: AMD X870E
• Memory
  • 4 x DIMM slots, max. 256GB, DDR5
  • Supports:
  • 8000+MT/s(OC) with Ryzen™ 9000 Series Processors,
  • 8000+MT/s(OC) with Ryzen™ 8000 Series Processors,
  • 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
  • ECC and Non-ECC Unbuffered DIMM
  • Dual Channel Memory Architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO™)
  • ASUS Enhanced Memory Profile (AEMP)
• Graphics
  • 1 x HDMI™ port
  • 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
• Expansion Slots
  • 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes
  • 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled)
  • 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled)
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
• Storage
  • 4 x M.2 slots and 4 x SATA 6Gb/s ports
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot is not supported
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • Ryzen™ 7000 series processors: PCIe RAID 0/1/10
  • Ryzen™ 8000 series processors: PCIe RAID 0/1
  • Ryzen™ 9000 series processors: PCIe RAID 0/1/5/10
  • X870/B850/X670/B650/A620 chipset: SATA RAID 0/1/10
• Ethernet
  • 1 x Marvell® AQtion 10Gb Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth
  • Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
  • 2x2 Wi-Fi 7 (802.11be)
  • Bluetooth® v5.4 2.4/5/6GHz frequency band
• USB Ports
  • 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)
  • 1 x USB 20Gbps port(s) (1 x USB Type-C®)
  • 7 x USB 10Gbps port(s) (7 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
  • 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
  • 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
  • 3 x USB 2.0 headers support 6 additional USB 2.0 ports
• Audio
  • Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
  • Impedance sense for front and rear headphone outputs
  • Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • Supports up to 32-bit/192 kHz playback*
• Audio Features:
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • Unique de-pop circuit

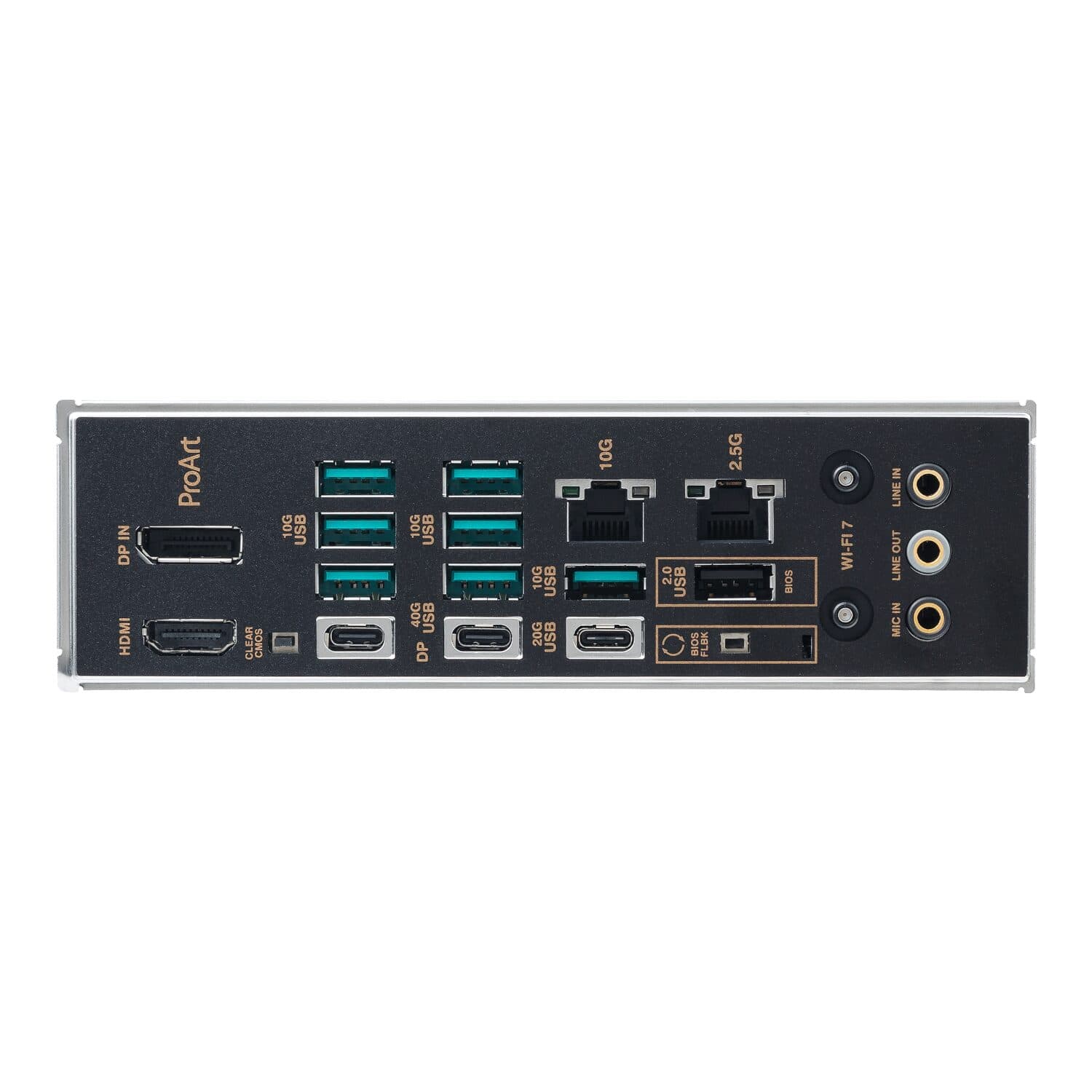

• Back Panel I/O Ports
  • 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 7 x USB 10Gbps ports (7 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
  • 1 x DisplayPort (Input only)
  • 1 x HDMITM port
  • 1 x Wi-Fi Module
  • 1 x Marvell® AQtion 10Gb Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • 3 x Audio jacks
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
• Internal I/O Connectors
• Fan and Cooling:
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 5 x 4-pin Chassis Fan headers
• Power related:
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connector
• Storage-related:
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB:
  • 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
  • 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
  • 3 x USB 2.0 headers support 6 additional USB 2.0 ports
• Miscellaneous:
  • 3 x Addressable Gen 2 headers
  • 1 x Chassis Intrusion header
  • 1 x COM Port header
  • 1 x CPU Over Voltage jumper
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x 10-1 pin System Panel header
  • 1 x Thermal Sensor header
• Special Features
• ASUS 5X PROTECTION III
  • DIGI+ VRM (- Digital power design)
  • Enhanced DRAM Overcurrent Protection
  • ESD Guards
  • LANGuard
  • Overvoltage Protection
  • Safeslot
  • Stainless-Steel Back I/O
• ASUS Q-Design
  • M.2 Q-Latch
  • M.2 Q-Release
  • M.2 Q-Slide
  • PCIe Slot Q-Release Slim (with PCIe SafeSlot)
  • Q-Antenna
  • Q-Connector
  • Q-DIMM
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot
• ASUS Thermal Solution
  • M.2 heatsink backplate
  • M.2 heatsinks
  • VRM heatsink design
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • ProCool
  • Pre-mounted I/O shield
  • SafeSlot
  • SafeDIMM
• AURA Sync
  • Addressable Gen 2 headers
• Bespoke Motherboard Design & Business-Focused Features
  • 24/7 Reliability
  • Overcurrent Protection
• Front Panel USB 20Gbps with Quick Charge 4+ Support
  • Support: up to 30W fast charging and USB Wattage Watcher
  • Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A
  • Compatible with PD3.0
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • Aura Creator
  • Aura Sync
  • Fan Xpert 4 with AI Cooling II
  • Power Saving
  • ASUS DriverHub
  • ASUS GlideX
  • USB Wattage Watcher
  • TurboV Core
  • ASUS CPU-Z
  • ProArt Creator Hub
  • CreationFirst
  • Adobe Creative Cloud (Free Trial)
  • Norton 360 Deluxe (60 Days Free Trial)
  • WinRAR (40 Days Free Trial)
• UEFI BIOS
  • ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
• FlexKey
• Remote Management Features
• IT Management software is supported
  • ASUS Control Center Express(ACCE)
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Operating System
  • Windows® 11
• Form Factor
  • ATX Form Factor
  • Dimensions: 30.5 cm x 24.4 cm

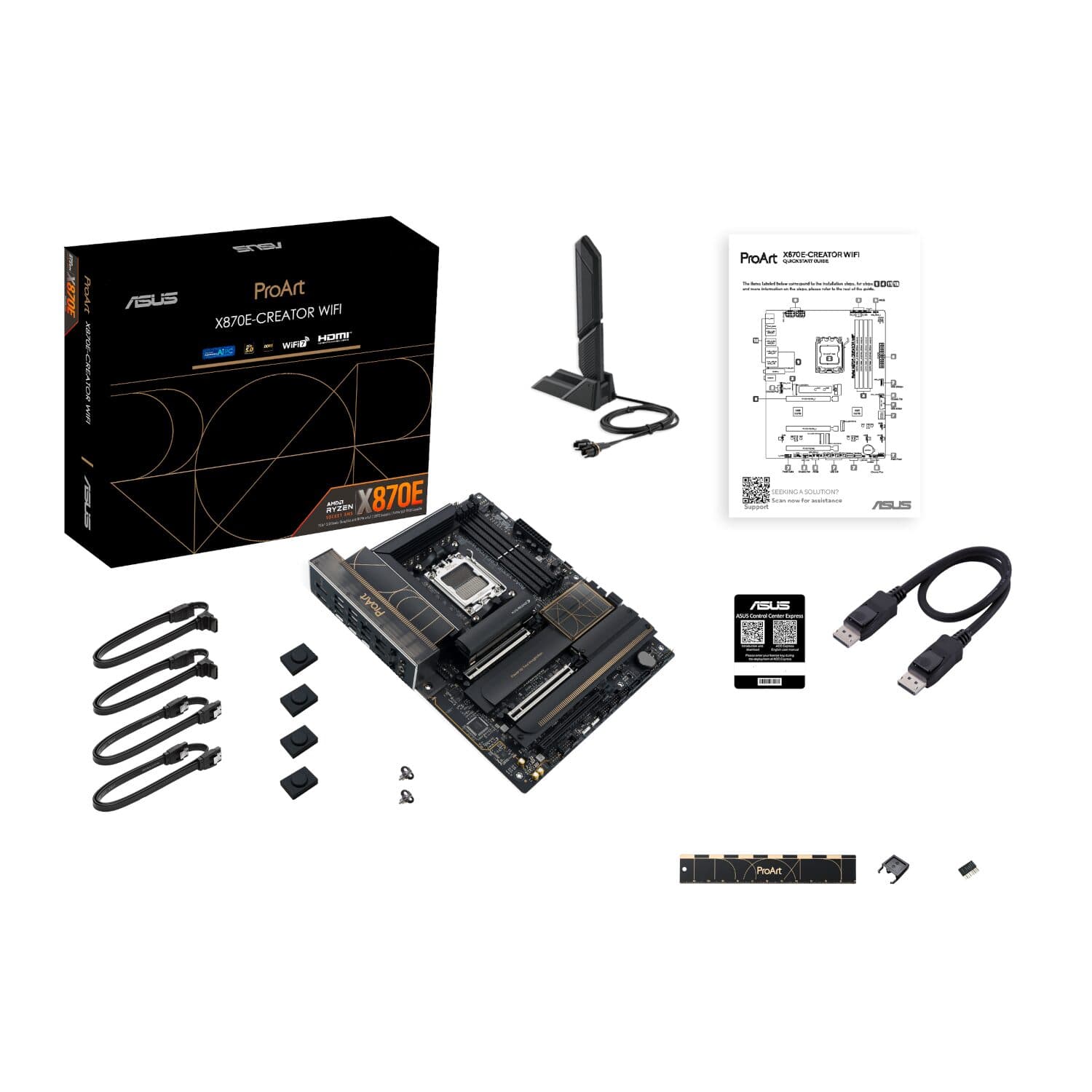

WHAT'S IN THE BOX:

• ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard x1
• DisplayPort cable x1
• SATA 6Gb/s cables x4
• Thermal pad for M.2 22110 x1
• ASUS WiFi Q-Antenna x1
• Q-connector x1
• M.2 Q-Latch package x1
• M.2 Q-Latch Q-Slide package for M.2 backplate x1
• Rubber Packages for M.2 x2
• ProArt ruler x1
• Quick start guide x1
• ACC Express Activation Key Card x1
