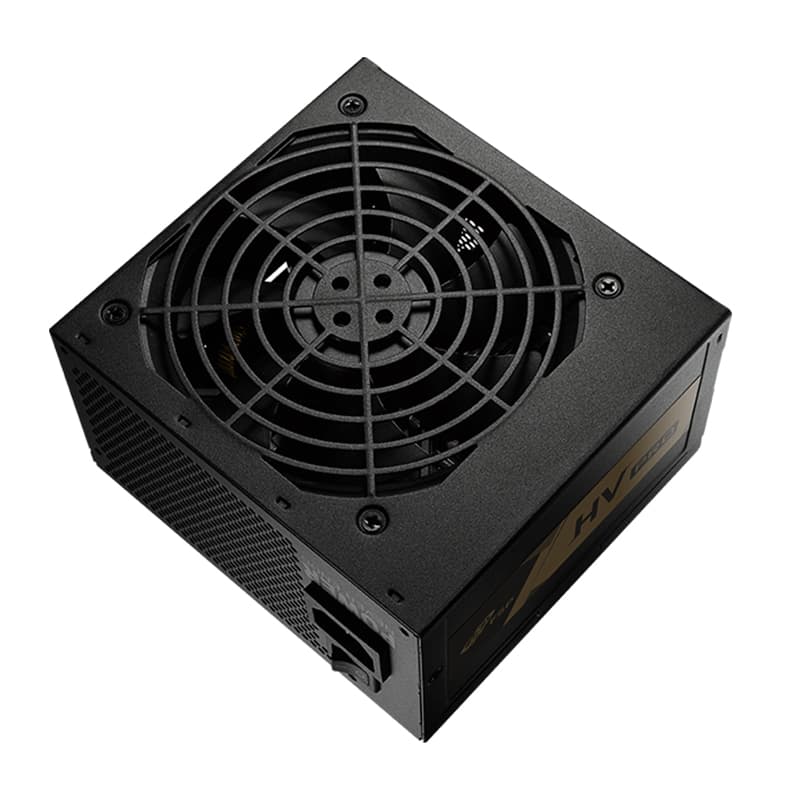

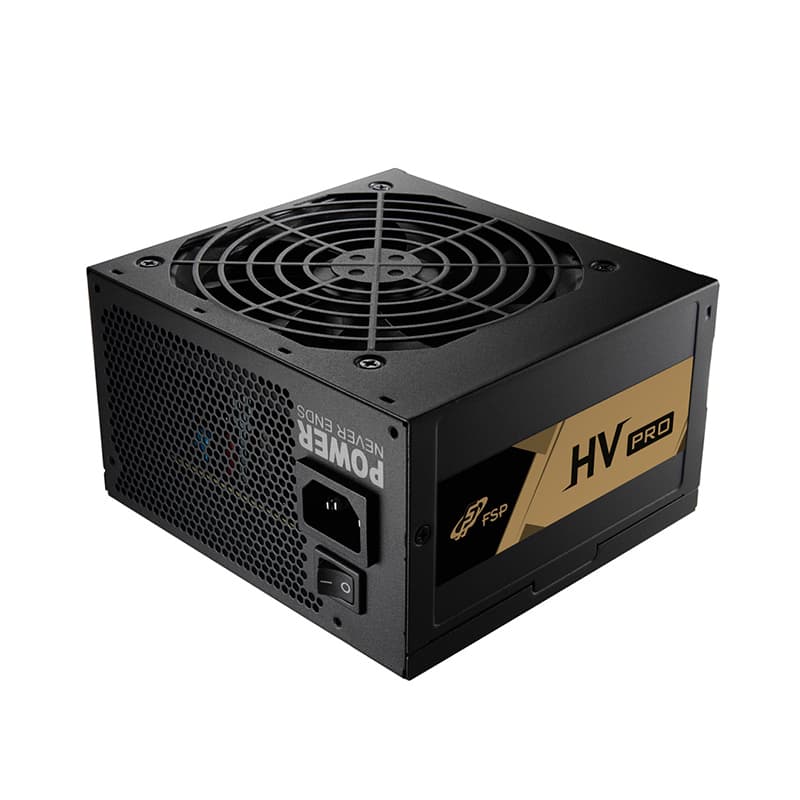

FSP HV Pro 550W Plus Non-Modular PSU
The FSP HV PRO 550W 80Plus PSU is a gaming PSU that features 550W of power for more high end hardware. With its 85% efficiency this PSU is perfect for enthusiasts or just for someone who needs more power for their gamin...
Complies with ATX12 v2.52 & EPS12 v2.92
Efficiency 85% @ typical Load
Active PFC ≧ 0.9
Hold up time > 17ms @80% Load
Back order
36 MonthsEAN: 4713224523083Black
Technical Specifications
SKU: PPA5505402
ean4713224523083
brandFSP
colourBlack
warranty36 Months
wattage-w550
form-factorATX
pcie-eightsixtwo2
psu-energy-efficient80 Plus White
Description
The FSP HV PRO 550W 80Plus PSU features a custom DC-DC design which provides more safety and power efficiency. With a 230V 80 Plus™ rating, this model delivers over 85% high efficiency and low noise levels thanks to its thermal control fan design, where a large 120mm fan takes care of cooling duties when required, making it excellent for situations that are sensitive to size and noise.
With 0.9 Active Power Factor Correction, the HV PRO series comes across with guaranteed wattage of continuous power, which delivers the full amount of power to your PC system. For gaming enthusiasts, the HV PRO series features dual CPU power connectors to support high-end motherboards and provide stable power for your CPU. An advanced thermal control fan makes optimal cooling and reduces noise under maximum operation. For maximum efficiency and stable voltage, HV PRO series with its DC to DC circuit design offers benefits such as better compatibility and reliability, and high system compatibility especially in cross regulation mode.
FEATURES:
- Complies with ATX12 v2.52 & EPS12 v2.92
- Efficiency 85% @ typical Load
- Active PFC ≧ 0.9
- Hold up time > 17ms @80% Load
- +12V Single-Rail Design
- +5V &3.3V DC to DC Module Design
- 120mm Silent & long life Fan
- Complete Protections: OCP/OVP/OPP/SCP
SPECIFICATIONS:
- Rated Output Power: 550W
- Form Factor: ATX 12V V2.4 & EPS 12V V2.92
- 80 PLUS Certification: 230V EU Standard
- Input Voltage: 200-240V
- Input Current: 4A
- Input Frequency: 50-60Hz
- PFC: Active PFC
- Efficiency: 85%
- Fan Type: 120mm Sleeved Fan
- Connectors:
- 1 x 24(20+4)pin MB
- 2 x 8(4+4)pin CPU
- 2 x 8(6+2) Pin PCI-E
- 4 x SATA
- 2 x Molex
- 1 x Floppy
- Dimensions: 150 x 140 x 86 mm
- Weight: 1854g
- Protection: OCP, OVP, OPP, SCP
WHAT'S IN THE BOX:
- FSP HV PRO 550W 80Plus PSU - Black x1
- Power cable x1
