FSP Hydro PTM Pro ATX3.0(PCIe) 1200w Fully Modular PSU
The Hydro PTM PRO 1200W ATX Fully Modular Power Supply has a fully modular design with all-black coated ribbon cables for a more aesthetically pleasing solution. The HYDRO PTM Pro series includes an FDB fan and an intel...
Complies with ATX12V V3.0 & EPS12V V2.92
Intel's Latest CPU ready
Global Safety Approved
High efficiency ≧ 92%
In stock· CPT, JHB
120 MonthsEAN: 4713224527395Black
Technical Specifications
SKU: PPA12A1020
ean4713224527395
brandFSP
colourBlack
warranty120 Months
form-factorATX
Description
The Hydro PTM PRO 1200W ATX Fully Modular Power Supply has a fully modular design with all-black coated ribbon cables for a more aesthetically pleasing solution. The HYDRO PTM Pro series includes an FDB fan and an intelligent 0dBA function to reduce noise and provide longer life. Furthermore, the fan has a longer lifespan than a regular fan. Hydro PTM Pro series power supplies have 80 Plus Platinum Certification, which implies they consume less heat and have a reduced running cost. At 50% load, the power supplies are guaranteed to perform at a minimum efficiency of 92%.
The series includes a native PCIe5.0 connector as well as 4 x PCIe 6+2Pin slots for graphics cards and 2 x CPU connector slots for increased performance. The HYDRO PTM Pro series has highly tight voltage regulation, with output voltage regulation of less than +/- 1% above 10% load change and superior efficiency and voltage stability. When the Eco Button is turned on, the PSU consumes less power and runs quietly. When the power supply is under 30% load, the fan in the power supply will not run, resulting in a silent state.
FEATURES:
- Complies with ATX12V V3.0 & EPS12V V2.92
- Intel's Latest CPU ready
- Global Safety Approved
- High efficiency ≧ 92%
- Powerful +12V single rail design
- Quiet and durable cooling
- Full Japanese electrolytic capacitors
- Intelligent fan speed control circuit design
- Full protections OCP, OVP, SCP, OPP, OTP, UVP
- High Wattages with 80PLUS® Platinum Certification
- Unique product ID with changeable side stickers for DIY enthusiasts and gamers
SPECIFICATIONS:
- Rated Output Power: 1200W
- Form Factor: ATX
- 80 PLUS Certification: 80 PLUS® Platinum
- Input Voltage: 100-240V
- Input Current: 14-9A
- Input Frequency: 50-60Hz
- PFC: Active PFC
- Efficiency: 92%
- Fan Type: FBD Fan, 13.5 cm
- Protection: OCP, OVP, OPP, SCP

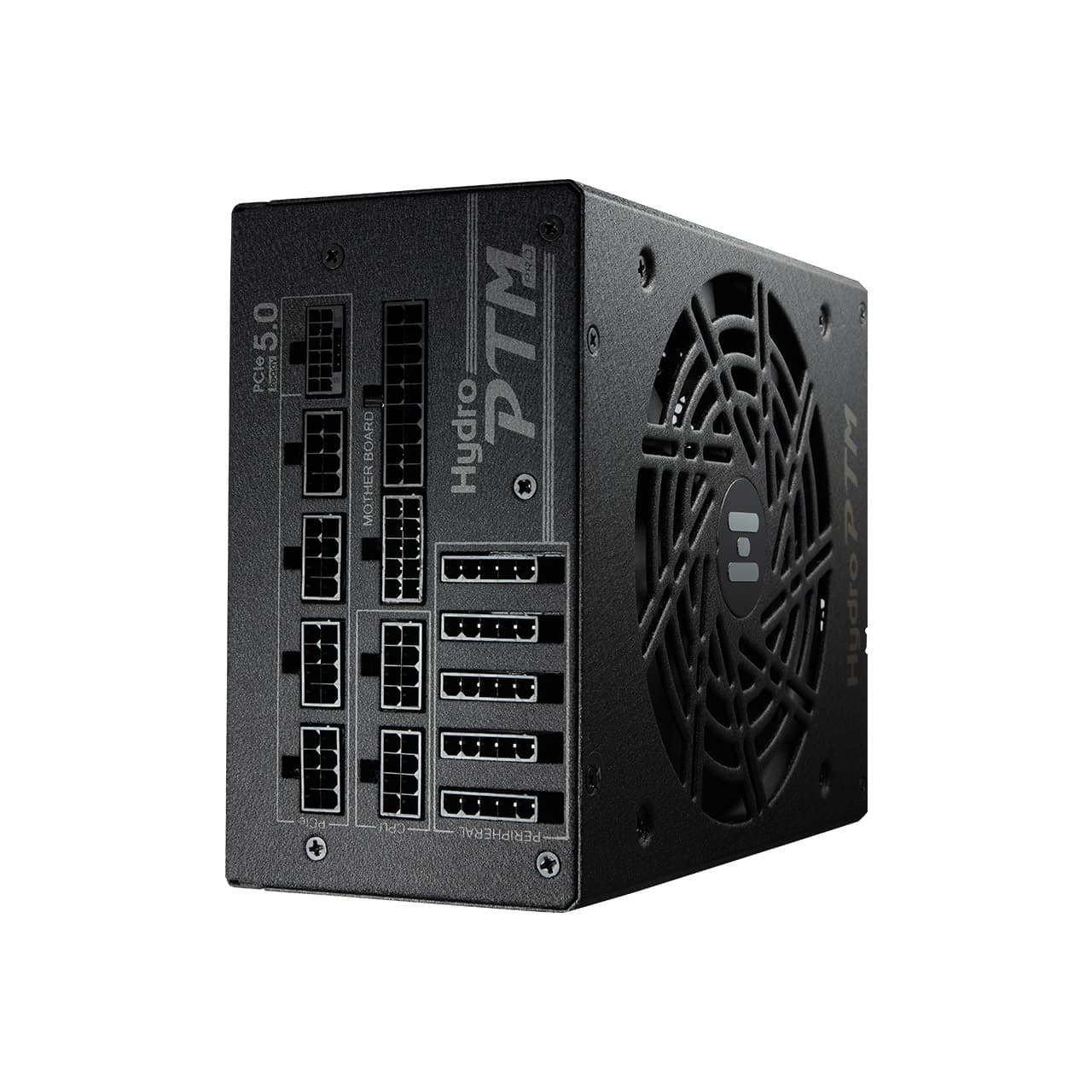

- Cable Connections:
- ATX 20+4 x 1
- 4+4 PIN x 3
- 12VHPWR x 1
- PCI-E 6+2 x 6
- SATA x 14
- Molex (PERIPHERAL) x 5
- Floppy x 1
- Dimensions: 15 x 19 x 8.6 cm
WHAT’S IN THE BOX:
- FSP Hydro PTM Pro 1200W ATX Fully-Modular Power Supply – Black x1
