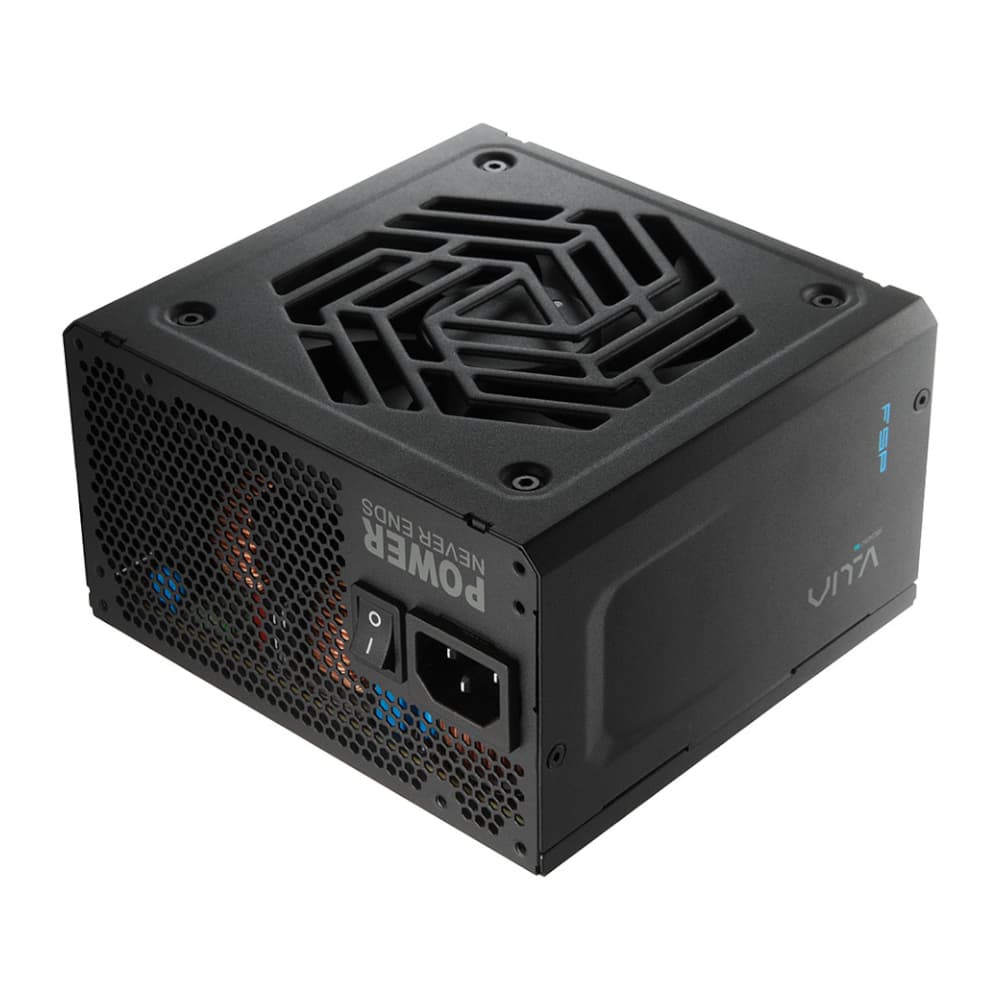

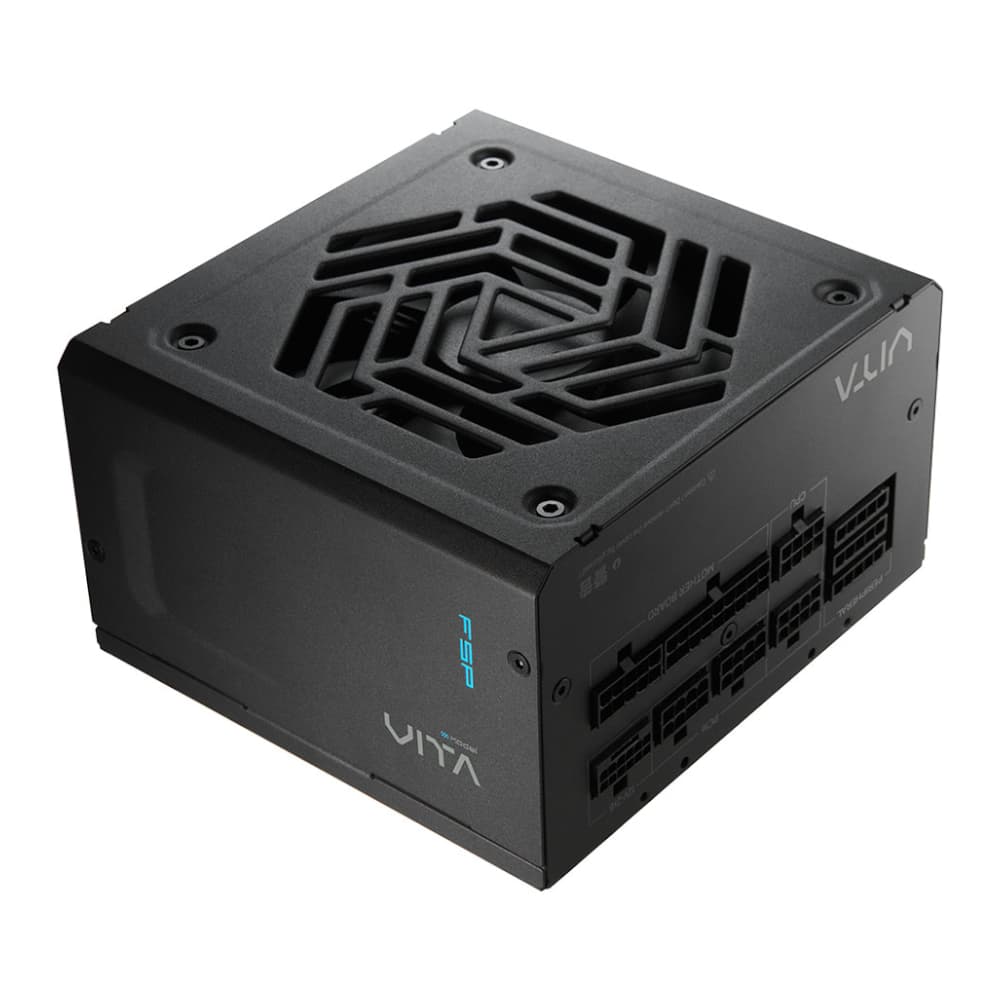

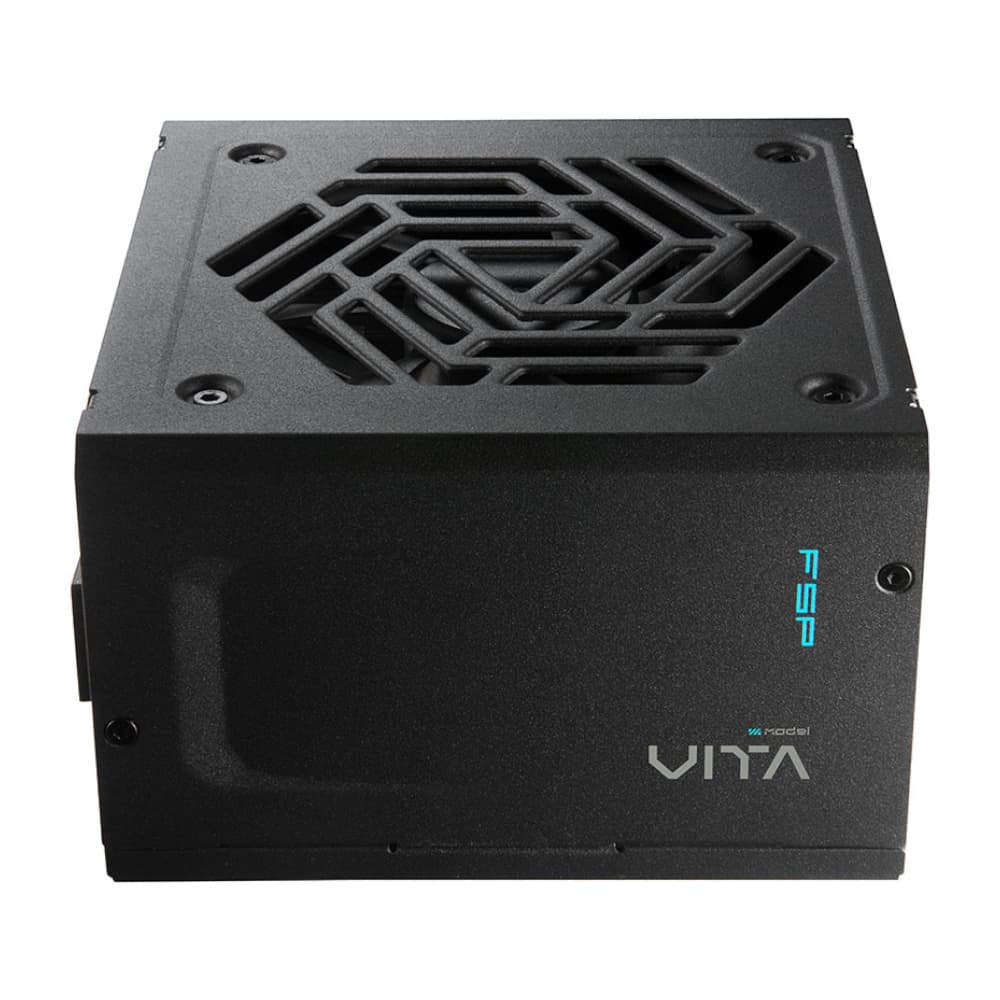

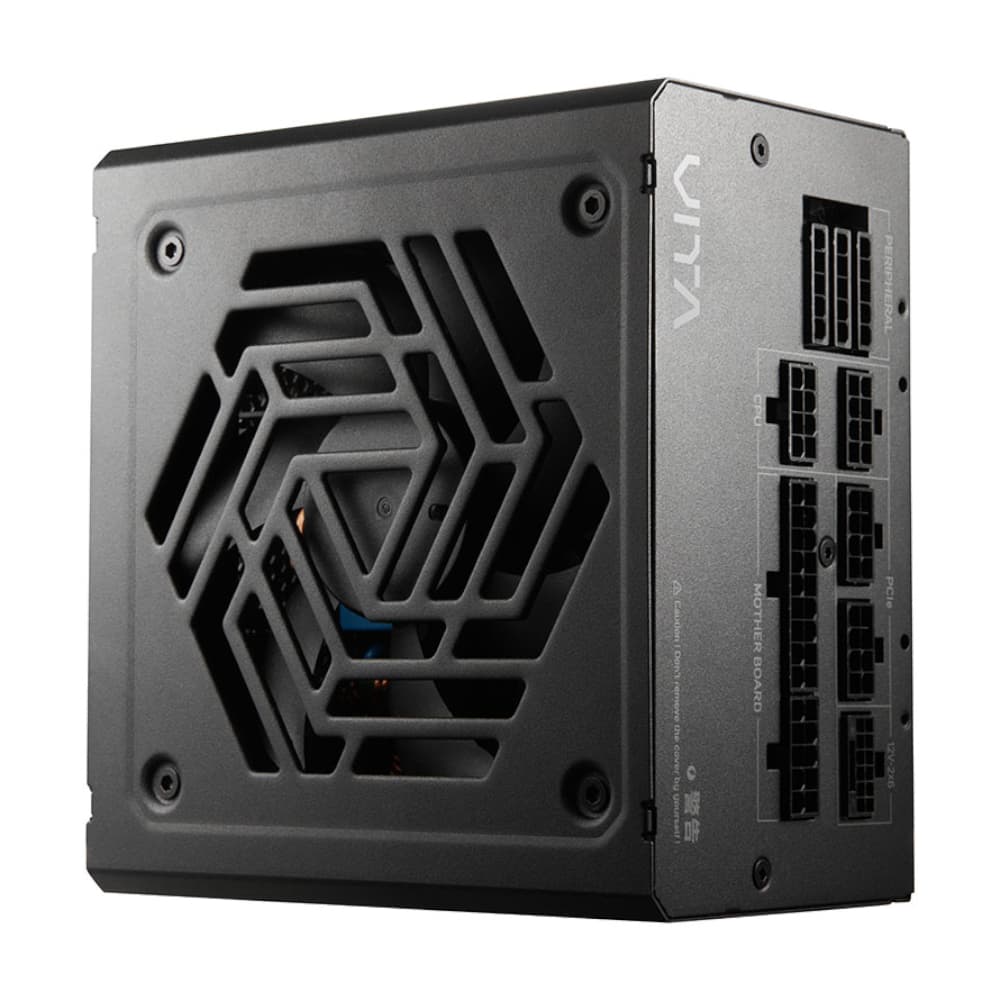

FSP VITA GM 850W 80 PLUS Gold Modular Power Supply
Built to handle the demanding power requirements of tomorrow, these PSUs support total power excursion as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring they deliver peak performance for future hardware upgrades....
Complies with ATX 12V V3.1 & EPS 12V V2.92
Efficiency ≧ 90% at typical load
80 PLUS ® gold certified
105°C Japanese bulk capacitor
Back order
120 MonthsBlack
Technical Specifications
SKU: PPA8504211
brandFSP
colourBlack
warranty120 Months
Description
Built to handle the demanding power requirements of tomorrow, these PSUs support total power excursion as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring they deliver peak performance for future hardware upgrades. Certified with 80 PLUS® Gold efficiency and achieving platinum-level efficiency at typical loads, these power supplies minimise power loss, heat, and noise, offering a cooler and quieter operation.
The advanced LLC resonant-converter topology with synchronous rectification reduces switching losses and keeps the output voltage stable, even under heavy loads, maximising overall system efficiency. The +5V and 3.3V DC to DC circuit design ensures consistent voltage and system stability, while premium 105°C Japanese bulk capacitors provide top-tier reliability and longevity, making them the ideal choice for high-performance PCs. Whether you’re a gamer or a power user, these PSUs deliver lasting power and performance you can count on.
FEATURES:
- Complies with ATX 12V V3.1 & EPS 12V V2.92
- Efficiency ≧ 90% at typical load
- 80 PLUS ® gold certified
- 105°C Japanese bulk capacitor
- 120mm hydraulic bearing (HYB) fan
- Fully modular cabling design
- Complete protections: OCP, OVP, SCP, OPP, UVP, OTP
SPECIFICATIONS:
- Model: VITA-850GM
- Rated Output Power: 850W
- Form Factor: ATX12V V3.1
- 80 PLUS Certification: Gold
- Input Voltage: 100-240Vac
- Input Current: 11-5.5A
- Input Frequency: 50-60Hz
- Efficiency: 90%
- Fan Type: HYB fan, 120mm
- Operation Temp: 40°C
- Protection: OCP, OVP, SCP, OPP, UVP, OTP
- DC Output/Max Output Current/Max Combined Power:
- +3.3V/20A/100W
- +5V/20A/100W
- +12V/70.83/850W
- -12V/0.3A/3.6W
- +5Vsb/3A/15W

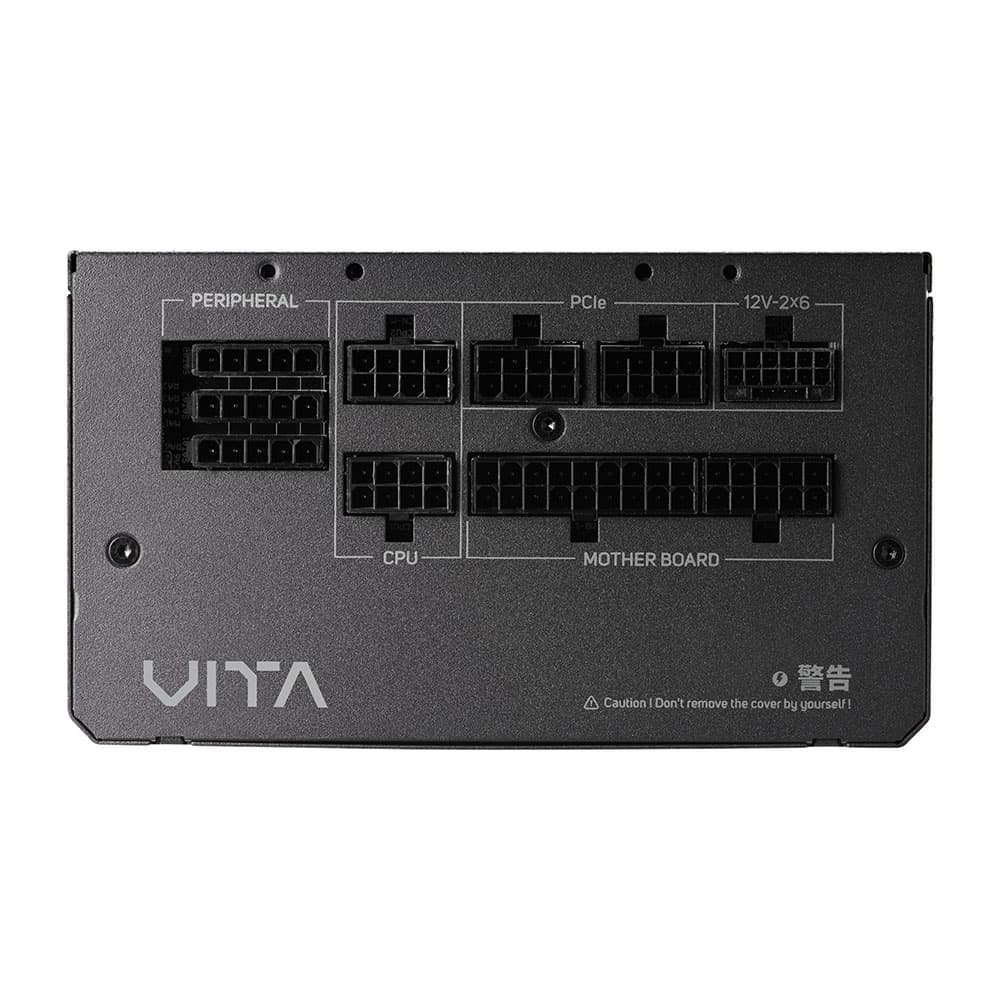

- Connectors:
- MB 20+4 x1
- 4+4 PIN x2
- PCIe 12V-2×6 x1
- PCI-E 6+2 x4
- SATA x8
- Molex (PERIPHERAL) x4
WHAT’S IN THE BOX:
- FSP VITA GM 850W 80 PLUS Gold Modular Power Supply – Black x1
- Modular Cables Set x1
Please note: This power supply does not come with a power cable, please see this link for a dedicated cable option to use with this product.
